High-end Workstations

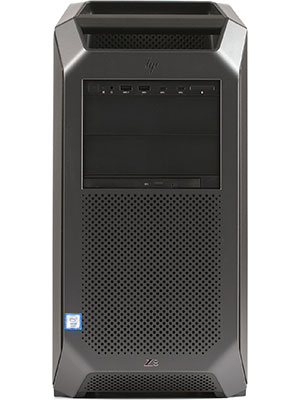

HP Z8

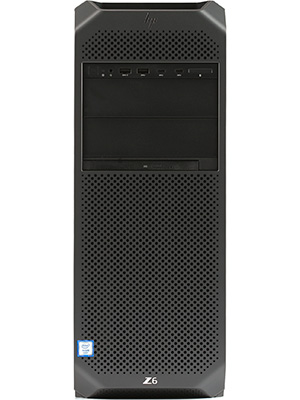

HP Z6

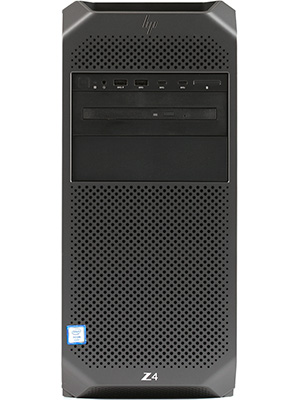

HP Z4
Manufacture Year(s)2018 - current 2018 - current 2018 - current
Form FactorRackable tower Rackable minitower Rackable minitower
Processor FamilyIntel Xeon Processor Scalable Family Intel Xeon Processor Scalable Family Intel Xeon W Processor Family
Intel Core i7/i9 Processor Family
ProcessorsIntel Xeon Platinum 82xx processors (2nd Gen, 2019)
Intel Xeon Platinum 81xx processors (1st Gen, 2018)
Intel Xeon Gold 61xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Gold 62xx processors (2nd Gen, 2019)
Intel Xeon Gold 61xx processors (1st Gen, 2018)
Intel Xeon Gold 52xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Gold 52xx processors (2nd Gen, 2019)
Intel Xeon Gold 51xx processors (1st Gen, 2018)
Intel Xeon Silver 42xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Silver 42xx processors (2nd Gen, 2019)
Intel Xeon Silver 41xx processors (1st Gen, 2018)
Intel Xeon Bronze 32xx processors (2nd Gen, 2019)
Intel Xeon Bronze 31xx processors (1st Gen, 2018)
Intel Xeon Platinum 82xx processors (2nd Gen, 2019)
Intel Xeon Platinum 81xx processors (1st Gen, 2018)
Intel Xeon Gold 61xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Gold 62xx processors (2nd Gen, 2019)
Intel Xeon Gold 61xx processors (1st Gen, 2018)
Intel Xeon Gold 52xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Gold 52xx processors (2nd Gen, 2019)
Intel Xeon Gold 51xx processors (1st Gen, 2018)
Intel Xeon Silver 42xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Silver 42xx processors (2nd Gen, 2019)
Intel Xeon Silver 41xx processors (1st Gen, 2018)
Intel Xeon Bronze 32xx processors (2nd Gen, 2019)
Intel Xeon Bronze 31xx processors (1st Gen, 2018)
Intel Cascade Lake W (CLX-W) and Cascade Lake X (CLX-X) CPUs
Intel Xeon W-22xx processors (2nd Gen)
Intel Xeon W-21xx processors (1st Gen)
Intel Core i9-109xx processors (1st Gen)
Intel Core i9-99xx processors (1st Gen)
Intel Core i7-79xx processors (1st Gen)
Intel Core i7-78xx processors (1st Gen)
ChipsetIntel® C622 Intel® C622 Intel® C422
MemoryType: DDR4 RDIMM ECC
Slots: 24 DIMM (12 per processor)
Speed: 2666MHz (1st Gen Intel Xeon Scalable), 2933MHz (1st Gen Intel Xeon Scalable)
Capacities: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Maximum: 3 TB (1.5 TB per processor)
Type: DDR4 RDIMM ECC
Slots: 6 DIMM onboard (6 DIMM additional with optional 2nd processor riser)
Speed: 2666MHz (1st Gen Intel Xeon Scalable), 2933MHz (1st Gen Intel Xeon Scalable)
Capacities: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Maximum: 768 GB
Type
DDR4 ECC RDIMMs - Supported with Xeon W Series CPUs
DDR4 Non-ECC UDIMMs supported with Core X Series CPUs

Speed
2666MHz (1st gen CPUs)
2933MHz (2nd gen CPUs)

Slots
8 DIMM

Maximum
128 GB for Core X Sky Lake Series CPUs
256 GB for Core X Cascade Lake Series CPUs
512 GB for Xeon W Sky Lake Series CPUs
512 GB for Xeon W Cascade Lake Series CPUs
I/O ControllerIntegrated SATA 6.0 Gb/s
Factory integrated RAID available for SATA/SAS drives (RAID 0, 1, and 10)
Integrated SATA 6.0 Gb/s
Factory integrated RAID available for SATA/SAS drives (RAID 0, 1, and 10)
Integrated SATA 6.0 Gb/s
Factory integrated RAID available for SATA/SAS drives (RAID 0, 1, and 10)
Internal Storage4x Drive Bays - Up to 4x 3.5" or 2.5" SATA Drives
3x Optical Bays - Up to 4x 3.5" or 2.5" SATA Drives
Up to 4x M.2 NVMe PCIe SSDs on 2 'Personality' PCIe x4 Slots. 2 drives per CPU.
Up to 8x M.2 NVMe PCIe SSDs on 2 HP Z Turbo Quad Pro x16 cards. 1 card per CPU.
Up to 4x 3.5" (or 2.5") SATA Drives
Up to 2x M.2 NVMe PCIe SSDs M.2 on motherboard
+ Up to 4x drives on a HP Z Turbo Quad Pro x16 card
SATA Drives
Up to 4x 3.5" (or 2.5")

M.2 NVMe PCIe SSDs
Up to 2x drives on motherboard with Xeon W Series CPUs
Up to 1x drives on motherboard with Core X Series CPUs
+ Up to 4x drives on a HP Z Turbo Quad Pro x16 card
External StorageIntegrated: DVD Writer
Optional: Blu-Ray Writer
Integrated: DVD Writer
Optional: Blu-Ray Writer
Integrated: DVD Writer
Optional: Blu-Ray Writer
Available GraphicsNVIDIA GeForce
NVIDIA Quadro
NVIDIA NVS
AMD Radeon Pro
NVIDIA GeForce
NVIDIA Quadro
NVIDIA NVS
AMD Radeon Pro
NVIDIA GeForce
NVIDIA Quadro
NVIDIA NVS
AMD Radeon Pro
AudioRealtek HD ALC221 Realtek HD ALC221 Realtek HD ALC221
NetworkingLAN Integrated:
Intel i219 and i210 Gigabit Ethernet controllers with Intel Remote Wake UP, PXE and Jumbo frames support.
LAN Optional:
Intel i210 1GbE single port PCIe (Gen 3 x1) network card
Intel i350 1GbE dual port PCIe (Gen 3 x1) network card
Intel i350 1GbE quad port PCIe (Gen 3 x1) network card
Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) RJ45 network card
Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) SFP+ network card

WLAN Optional:
Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™
LAN Integrated:
Intel i219 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support.
LAN Optional:
Intel i210 1GbE single port PCIe (Gen 3 x1) network card
Intel i350 1GbE dual port PCIe (Gen 3 x1) network card
Intel i350 1GbE quad port PCIe (Gen 3 x1) network card
Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) RJ45 network card
Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) SFP+ network card

WLAN Optional:
Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™
LAN Integrated:
Intel i219 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support.
LAN Optional:
Intel i210 1GbE single port PCIe (Gen 3 x1) network card
Intel i350 1GbE dual port PCIe (Gen 3 x1) network card
Intel i350 1GbE quad port PCIe (Gen 3 x1) network card
Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) RJ45 network card
Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) SFP+ network card

WLAN Optional:
Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™
Expansion Slots2x PCIe x4
3x PCIe x8
4x PCIe x16
Slot 1 PCIe x4: Transforms to PCIe x8 when 2nd CPU is installed
Slots 3 and 6 PCIe x16 - Available only when 2nd processor is installed
1 PCIe x8 has rear bulkhead access
2 PCIe x8 are internal access only (For M.2 NVMe Solid-State Drives)
3 PCIe x4
1 PCIe x8
2 PCIe x16
2 M.2 PCIe x4
(Slot 1: CPU with open-ended connector. Slots 3 and 6: PCH with open-ended connector. Slot 4: CPU with open-ended connector (slot converts to x4 electrical when SSD is installed in 2nd M.2 slot). M.2 Slots 1 and 2: CPU up to 80 mm storage devices.)
2x PCIe x16
1x PCIe x8
2x PCIe x4
Ports and ConnectorsStandard Front Panel: 1 headset; 4 USB 3.1 (1 charging)
Premium Front Panel (optional): 1 headset, 2 USB 3.1 Gen1 Type-A (1 charging), 2 USB 3.1 Gen 2 Type-C, SD Media Card Reader.
Rear: 1 PS/2 keyboard port; 1 PS/2 mouse port; 2 RJ-45 (1 GbE); 6 USB 3.1 Gen 1; 1 audio-in; 1 audio-out; 1 serial
Standard Front Panel: 1 headset; 4 USB 3.1 (1 charging)
Premium Front Panel (optional): 1 headset, 2 USB 3.1 Gen1 Type-A (1 charging), 2 USB 3.1 Gen 2 Type-C, SD Media Card Reader.
Rear: 6 USB 3.1 Gen 1; 2 RJ-45 (1 GbE); 1 audio line out; 1 audio line in; 1 PS/2 mouse port; 1 PS/2 keyboard port; 1 serial port (optional)
Standard Front Panel: 1 headset; 4 USB 3.1 (1 charging)
Premium Front Panel (optional): 1 headset, 2 USB 3.1 Gen1 Type-A (1 charging), 2 USB 3.1 Gen 2 Type-C, SD Media Card Reader.
Rear: 6 USB 3.1 Gen 1; 2 RJ-45 (1 GbE); 1 audio line out; 1 audio line in; 1 PS/2 mouse port; 1 PS/2 keyboard port; 1 serial port (optional)
Power1450 W internal power supply, up to 90% efficiency, active PFC
1125 W internal power supply, up to 90% efficiency, active PFC
1000 W internal power supply, up to 90% efficiency, active PFC
700 W internal power supply, up to 90% efficiency, active PFC
Internal: Two 2.5" or 3.5"
External: Two 5.25" (or 2.5" or 3.5")
Dimensions (W x D x H)8.5 x 21.7 x 17.5 in
21.59 x 55.12 x 44.45 cm
6.65 x 18.3 x 17.5 in
16.9 x 46.5 x 44.5 cm
1000 W internal power supply, up to 90% efficiency, active PFC
750 W internal power supply, up to 90% efficiency, active PFC
465 W internal power supply, up to 90% efficiency, active PFC
Weight49.4 lb
22.4 kg
(Exact weight depends upon configuration.)
29 lb
13.1 kg
(Exact weight depends upon configuration.)
15.2 x 6.65 x 17.5 in
38.6 x 16.9 x 44.5 cm
Energy Efficiency ComplianceENERGY STAR® qualified and EPEAT® registered configurations available ENERGY STAR® certified and EPEAT® Gold registered configurations available 22.4 lb
10.2 kg
(Exact weight depends upon configuration.)

Entry-level Workstations

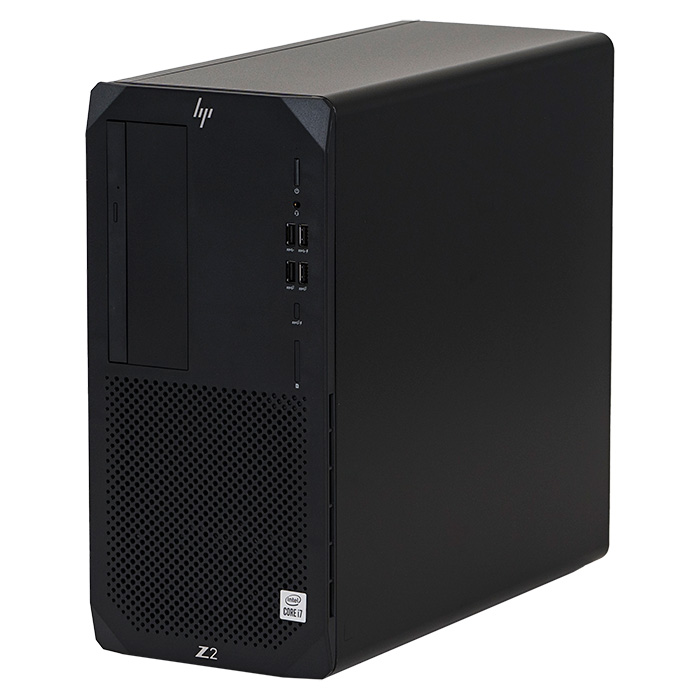

HP Z2 Tower

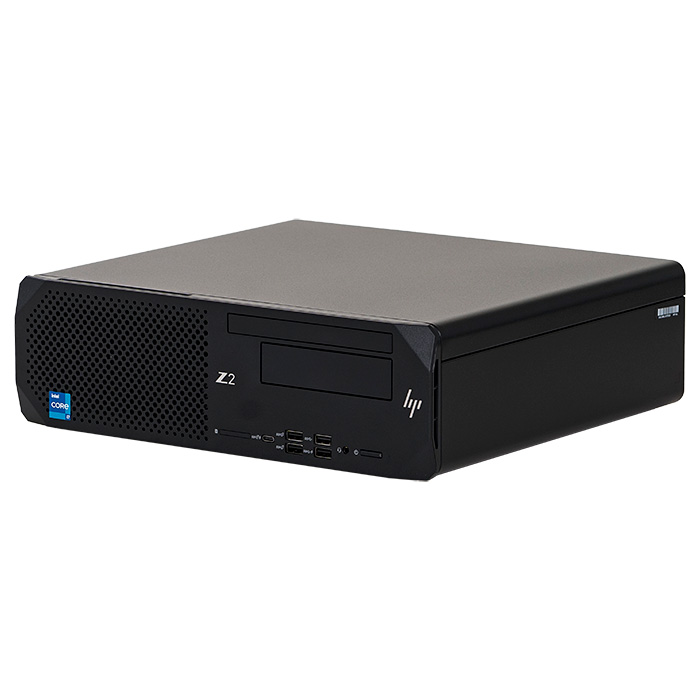

HP Z2 Small Form Factor

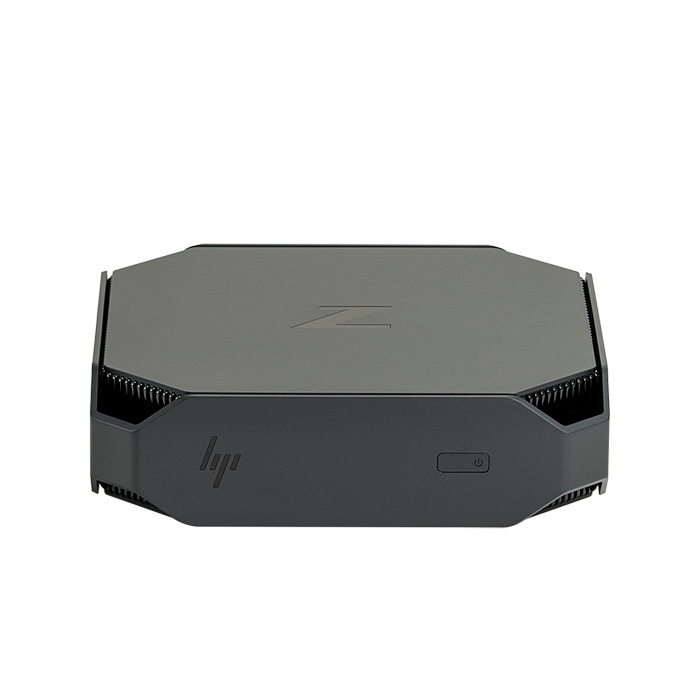

HP Z2 Mini
Manufacture Year(s)2020 - current 2020 - current 2020 - current
Form FactorMinitower Minitower Mini Portable PC
Rackable - 7 per 5U
Processor SocketLGA 1200 LGA 1200 LGA 1200
Processor FamilyIntel Xeon W Processor Family
Intel Core 10th Gen Processor Family
Intel Xeon W Processor Family
Intel Core 10th Gen Processor Family
Intel Xeon W-1000 Processor Family
Intel Core i7/i9 Processor Family
ProcessorsIntel Xeon W-1250 processor
Intel Core i5-10500 processor
Intel Core i7-10700 processor
Intel Core i7-10700K processor
Intel Core i9-10900 processor
Intel Core i9-10900K processor
Intel Xeon W-1250 processor
Intel Core i5-10500 processor
Intel Core i7-10700 processor
Intel Core i7-10700K processor
Intel Core i9-10900 processor
Intel Core i9-10900K processor
Intel Xeon W-1200 series processors
Intel Core 10th Gen processors
Memory4 DIMM Slots
3200MHz
DDR4 ECC RDIMMs (up to 128 GB) - Supported with Xeon W Series CPUs
DDR4 Non-ECC UDIMMs (up to 128GB) supported with Core i5/i7/i9 Series CPUs
4 DIMM Slots
3200MHz
DDR4 ECC RDIMMs (up to 128 GB) - Supported with Xeon W Series CPUs
DDR4 Non-ECC UDIMMs (up to 128GB) supported with Core i5/i7/i9 Series CPUs
2 SODIMM Slots
3200MHz
DDR4 ECC RDIMMs (up to 64 GB) - Supported with Xeon W Series CPUs
DDR4 Non-ECC UDIMMs (up to 64GB) supported with Core i7/i9 Series CPUs
Drive Bays2x 3.5" (Internal)
1x 5.25" (External)
2x M.2 2280 PCIe x4 (for NVMe SSD)
2x 3.5" (Internal)
1x 5.25" (External)
2x M.2 2280 PCIe x4 (for NVMe SSD)
1x 2.5" (SATA)
2x M.2 2280 PCIe x4 (NVMe)
AudioRealtek HD ALC221 Realtek HD ALC221 Realtek HD ALC221
Networking1 x RJ45 (Gigabit) 1 x RJ45 (Gigabit) Ethernet: 1 x RJ45 (Gigabit)
Wi-Fi: Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz)
Bluetooth: 5.0
Expansion Slots1 x PCIe 3.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
1 x M.2 2230 (E-Key)
1 x PCIe 3.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
1 x M.2 2230 (E-Key)
4 x USB Type-A (USB 3.1 / USB 3.2 Gen 2)
2 x USB 3.1 / USB 3.2 Gen 2
3 x DisplayPort 1.4 Output
1 x 1/8" / 3.5 mm Headphone/Microphone/Line Input/Output
Ports and Connectors4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
4 x USB Type-A (USB 3.1 / USB 3.2 Gen 2)
2 x USB Type-A (USB 2.0)

3 x DisplayPort 1.4 Output

1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output
4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
4 x USB Type-A (USB 3.1 / USB 3.2 Gen 2)
2 x USB Type-A (USB 2.0)

3 x DisplayPort 1.4 Output

1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output
280 W power supply
Power500 W internal power supply 500 W internal power supply 8.5 x 8.5 x 2.28" / 215.9 x 215.9 x 57.91 mm
Dimensions (W x D x H)15.2 x 14 x 6.7" / 386.1 x 355.6 x 170.2 mm 15.2 x 14 x 6.7" / 386.1 x 355.6 x 170.2 mm 4.6 lb / 2.1 kg
Weight15.43 lb / 7 kg 15.43 lb / 7 kg

ZWorkstations Inc. is an independent distribution channel and is not associated with HP Inc.
HP™ and HP Z™ are trademarks of HP Inc.

Condition

New: Purchased new from a HP authorized distributor. Never used. Ships in original manufacturer packaging.

Refurbished: Pulled from corporate environment in working condition. Tested upon arrival at our location and also after customization. Cosmetically grade A or B. Overall in good condition, but could have light scratches / scuffs. Ships in double-wall brown box with durable packaging material.
