Brainpower that matches yours: The latest Intel® Xeon® processor Scalable Family powers your most demanding applications. Now featuring a new generation of dual-socket architecture with up to 28 cores per processor (or up to 56 cores when built with dual processors) so you can extract maximum performance for your greatest vision.
Accelerate every project: Run your software as fast as possible and get real-time results thanks to this memory expandable machine with up to 768GB of 2933 MHz RDIMM memory.
Drown out distraction: Focus on your tasks with the workstation that’s quieter than ever. A new multichannel thermal design delivers advanced cooling and acoustics for enhanced cooling and quiet operation when your system is under heavy workloads.

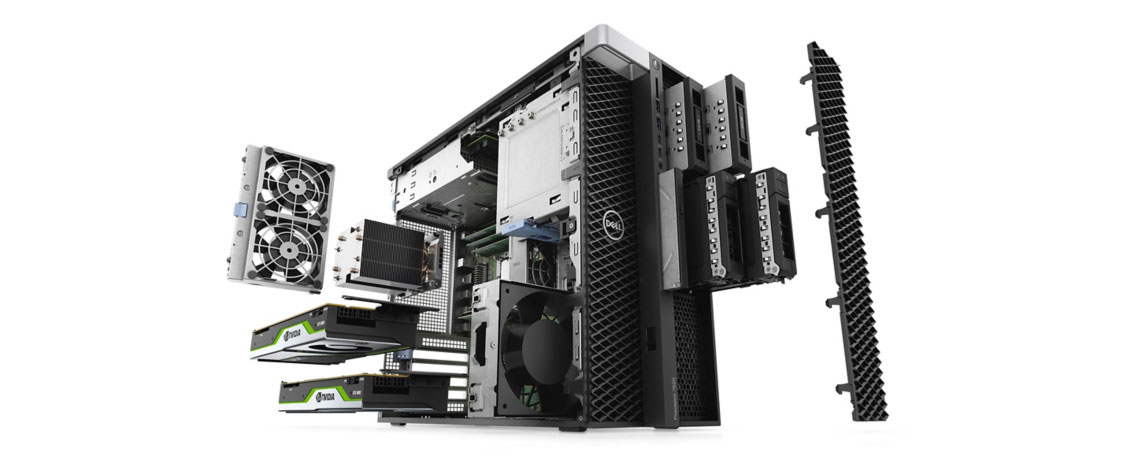

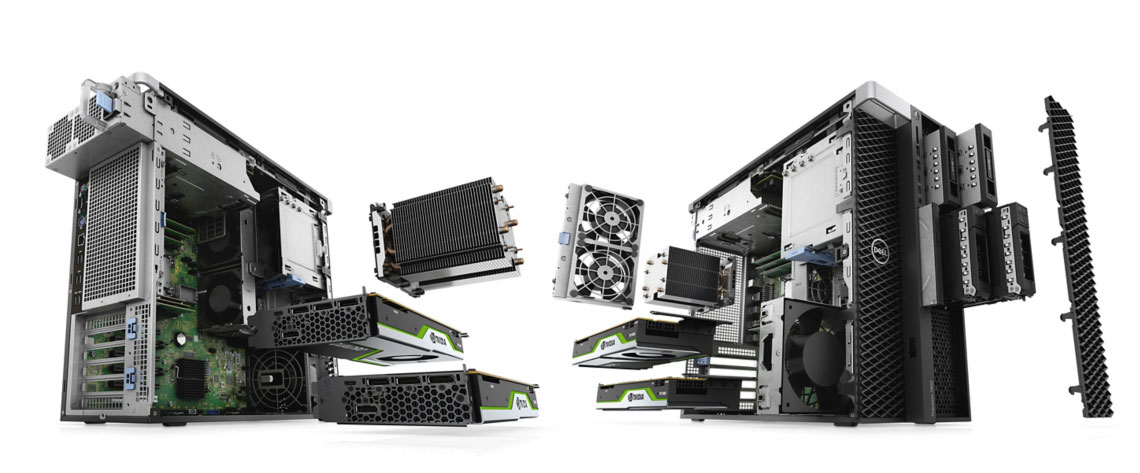

Featuring a FlexBay design, front access, hot-swappable storage and multichannel thermals to keep it cool under pressure, the Precision 7820 Tower grows with your ideas no matter where they take you.
Adapts to your innovations: Your Precision 7820 Tower is ready for complex projects, including virtual reality and AI workflows, with the next generation AMD Radeon Pro™ and highest-performing NVIDIA Quadro® RTX graphics. Your workstation supports up to 600W of graphics power up to 300W per card (single CPU system).
No project is too big: Up to six 2.5" or five 3.5" drives and front access storage including SATA, SAS and PCIe M.2/U.2 NVMe SSD can be configured for up to 68TB total storage and easily swapped. With the hot-swap feature on the M.2 and U.2 PCIe NVMe SSDs, you can remove drives without shutting down the workstation. Enable increased storage performance with the optional U.2 Intel® Optane™ SSD 905P Solid State Drives.

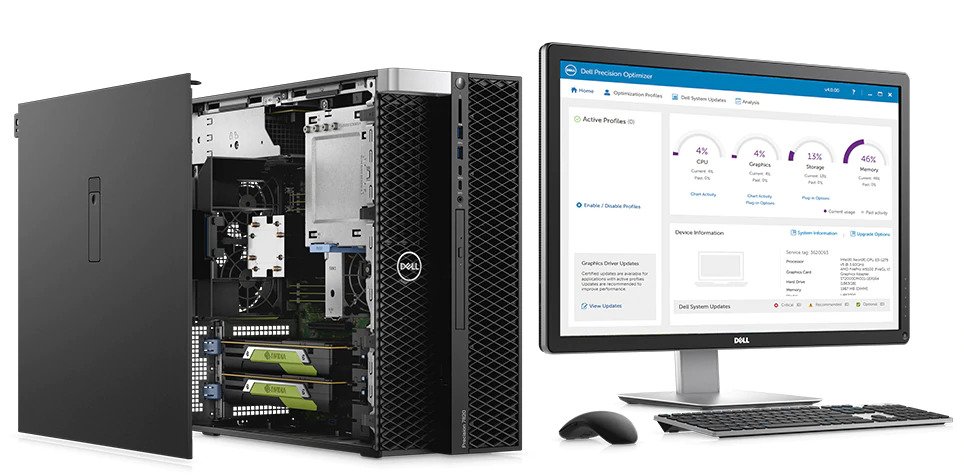

Tuned performance: Free with your Precision workstation, the Dell Precision Optimizer delivers faster application optimization with a single click compared to HP Advisor*. It also automatically tunes your workstation to run popular ISV applications at the fastest speeds possible, has automated system updates and provides analytics to address resource bottlenecks.
Premium customized performance: Upgrade to the new Dell Precision Optimizer premium version, the world’s first AI-based performance optimizer software for workstation*. This program learns the behavior of any user-specified applications, identifies optimization opportunities using machine learning and applies performance improvements.
Stay safe, stay secure
Reduce downtime with Dell Reliable Memory Technology (RMT) Pro. Designed to work with ECC memory, RMT protects your machine from potential crashes by mapping out bad memory locations after the system reboots.
Reliably access your data
Improve the availability of your data with hardware and software optional RAID storage options including PCIe NVMe SSDs.
Your work can count on it
Precision Workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications.
Your work can count on it
Independent Software Vendor (ISV) certification: Precision Workstations are tested to ensure the high-performance applications you rely on every day run smoothly. Dell ISV certifications cover the most popular independent software applications.

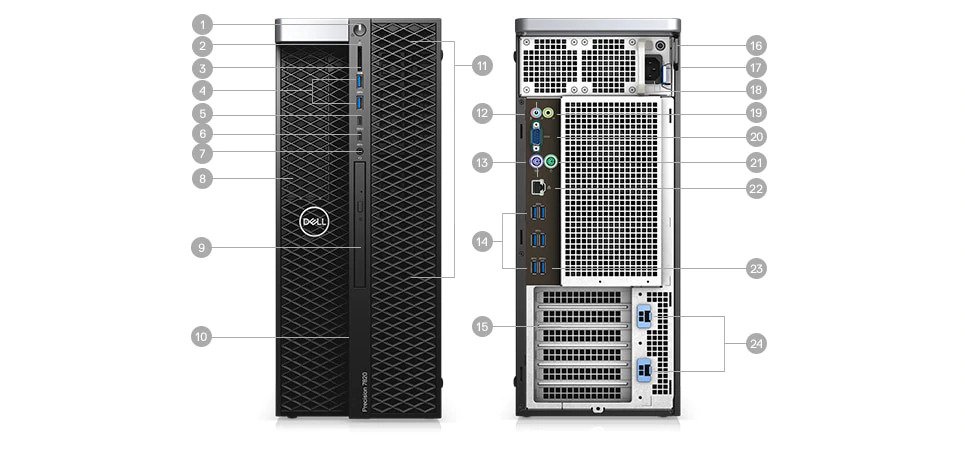

Ports & Slots
1. Power button/Power light | 2. Drive activity light | 3. SD card slot | 4. USB 3.1 ports | 5. USB 3.1 Type-C™ port with PowerShare | 6. USB 3.1 Type-C™ port | 7. Headset port | 8. 5.25 inch bay (optional) | 9. Optical drive | 10. Drive access release latch | 11. Drive carriers | 12. Microphone/Line-in port | 13. PS/2 Mouse port | 14. USB 3.1 ports | 15. Discrete graphics card slot (optional) | 16. Padlock ring | 17. Security cable slot | 18. Power cable connector | 19. Line-out port | 20. Serial port | 21. PS/2 Keyboard port | 22. Network port | 23. USB 3.1 port (supports smart Power-On) | 24. Expansion card slots

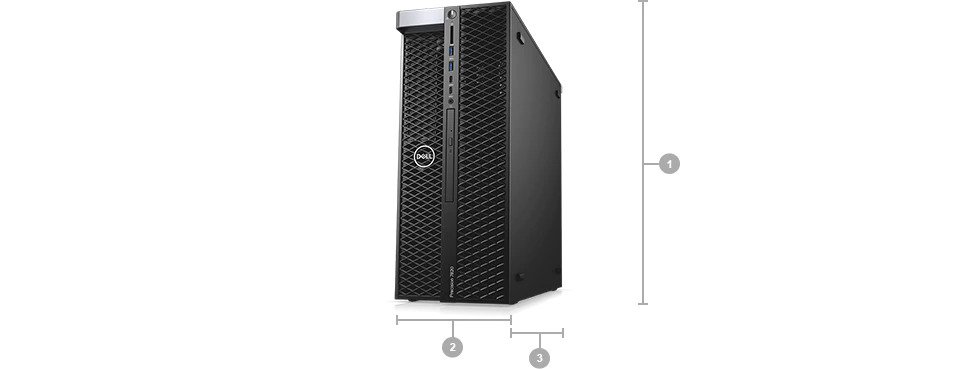

Dimensions & Weight
1. Height: 16.45" (417.9 mm) | 2. Width: 6.94" (176.5 mm) | 3. Depth: 20.4" (518.3 mm) | Starting weight: 32 lb (15.9kg)*
Manufacture Year(s) 2018 - current Form Factor Rackable tower Processor Family Intel Xeon Processor Scalable Family Processors Intel Xeon Platinum 82xx processors (2nd Gen, 2019)
Intel Xeon Platinum 81xx processors (1st Gen, 2018)
Intel Xeon Gold 61xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Gold 62xx processors (2nd Gen, 2019)
Intel Xeon Gold 61xx processors (1st Gen, 2018)
Intel Xeon Gold 52xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Gold 52xx processors (2nd Gen, 2019)
Intel Xeon Gold 51xx processors (1st Gen, 2018)
Intel Xeon Silver 42xxR processors (2nd Gen Refresh, 2020)
Intel Xeon Silver 42xx processors (2nd Gen, 2019)
Intel Xeon Silver 41xx processors (1st Gen, 2018)
Intel Xeon Bronze 32xx processors (2nd Gen, 2019)
Intel Xeon Bronze 31xx processors (1st Gen, 2018)
Memory Type: DDR4 RDIMM ECC
Slots: 6 DIMM onboard (6 DIMM additional with optional 2nd processor riser)
Speed: 2666MHz (1st Gen Intel Xeon Scalable), 2933MHz (1st Gen Intel Xeon Scalable)
Capacities: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Maximum: 768 GB
I/O Controller Integrated SATA 6.0 Gb/s
Factory integrated RAID available for SATA/SAS drives (RAID 0, 0 Data, 1, 5, and 10)
Internal Storage Up to 6 x 2.5” SATA drives
Up to 5 x 3.5” SATA drives
Front FlexBay M.2 NVMe PCIe SSDs - Up to 2x drives
M.2 NVMe PCIe SSDs - Up to 4x drives on 1 Dell Precision Ultra-Speed Drive Quad x16 card
SAS available with optional controller
External Storage Integrated: DVD Writer
Optional: Blu-Ray Writer
Available Graphics NVIDIA GeForce
AMD Radeon Pro
Audio Type: High Definition Audio Codec (2 Channel)
Controller: Integrated Realtek ALC3234
Networking LAN Integrated:
Intel i219 Gigabit Ethernet controller with Intel Remote Wake UP, PXE and Jumbo frames support.
Intel i210 1GbE single port PCIe (Gen 3 x1) network card
Intel i350 1GbE dual port PCIe (Gen 3 x1) network card
Intel i350 1GbE quad port PCIe (Gen 3 x1) network card
Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) RJ45 network card
Intel X550-T2 10GbE dual port PCIe (Gen 3 x4) SFP+ network card
Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™
Expansion Slots 2x PCIe x 16
1x PCIe x 16 wired as x8
1x PCIe x 16 wired as x4
1x PCIe x 16 wired as x1
Ports and Connectors Audio
Rear: 1x Audio Line out
Rear: 1x Audio Line in/Microphone
Front: 1x Universal Audio Jack
Rear: 1x RJ45 Network ports
Rear: 1x Serial port
Front: 4x USB 3.1 Gen1
Rear: 6x USB 3.1 Gen1
Rear: 1 x Keyboard
Rear: 1 x Mouse
Power Wattage: 950 W
Voltage: input voltage 100 VAC-240 AC
Dimensions (W x D x H) 6.9 x 20.4 x 16.5 in
17.6 x 51.8 x 41.8 cm
Weight 42 lb, 19 kg (Typical Configuration) Temperature Operating: 5 °C to 35 °C (41 F to 95 °F)
Storage: -40 °C to 65 °C (-40 F to 149 F)
