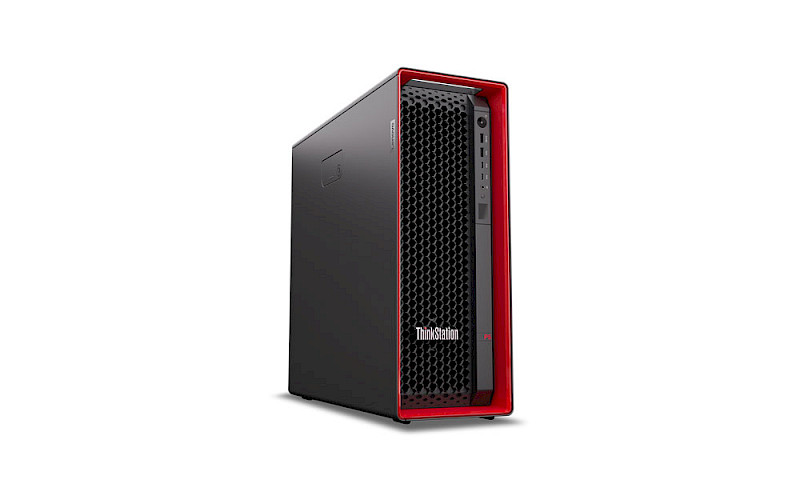

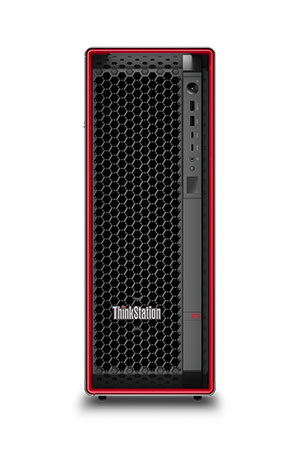

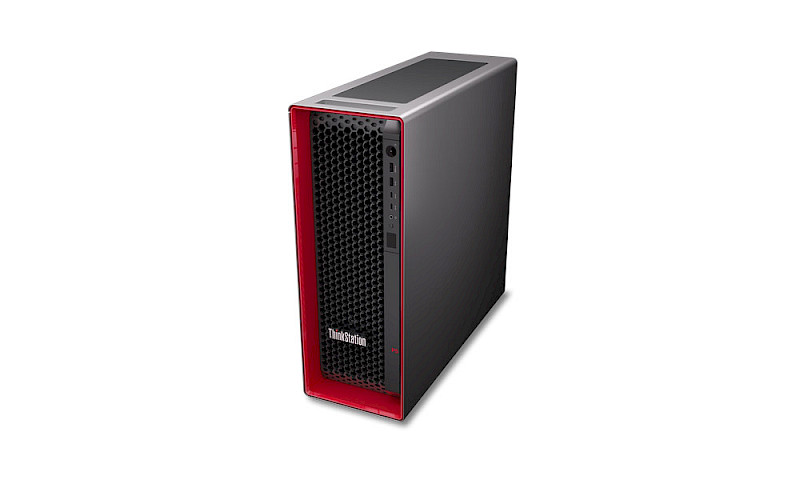

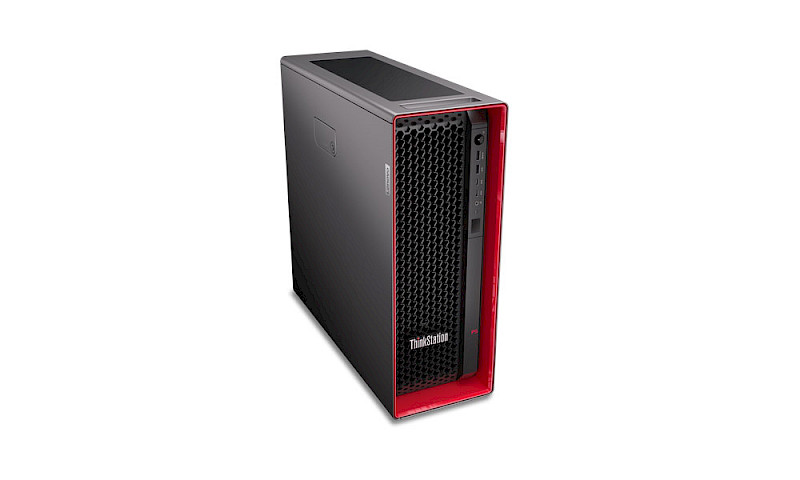

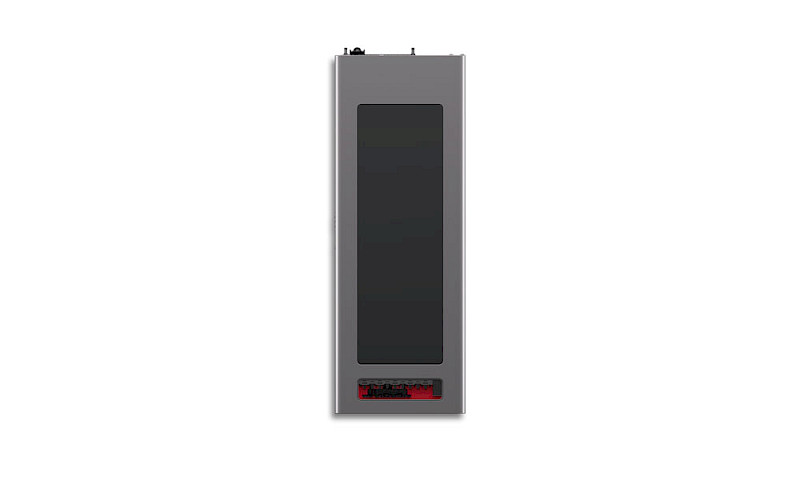

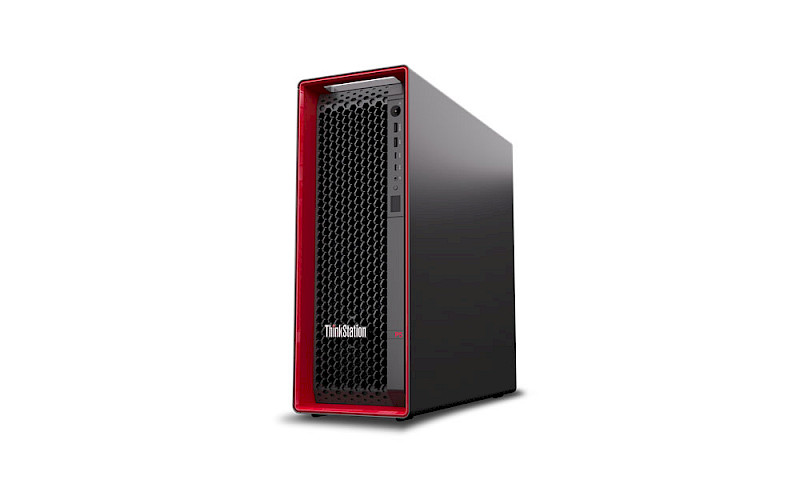

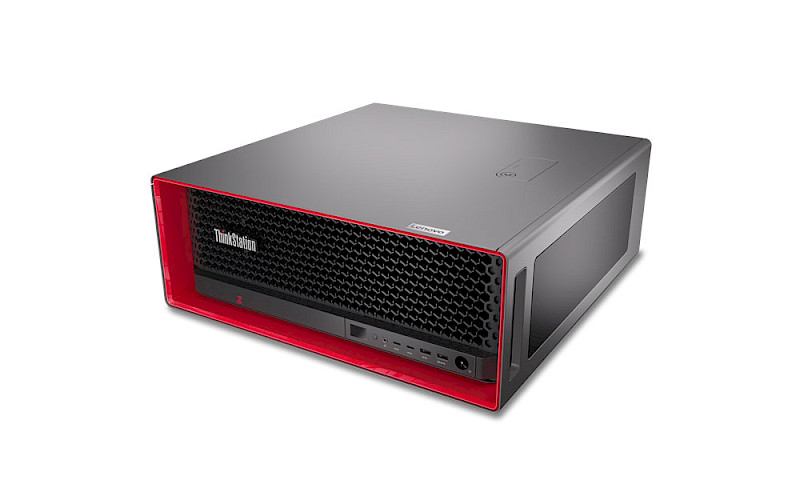

![Lenovo ThinkStation P5 Workstation](https://zworkstations.com/site/assets/files/3661002/lenovo-thinkstation-p5.jpg)
Manufacture Year(s) 2023 Form Factor Mid tower Processor Family 4th Generation Intel Xeon W-series Processors
Single Socket LGA-4677Processors Intel Xeon W7-2400 Processors
Intel Xeon W5-2400 Processors
Intel Xeon W3-2400 Processors
Up to 24 cores, up to 4.18HzChipset Intel Alder Lake S PCH W790 Memory 8 DIMM Slots
4 Memory Channels
Up to 512GB DDR5 4800MT/s Registered ECC MemoryStorage Up to 6 total drives
2 M.2 NVMe PCIe Gen 4 Connectors Onboard
1 M.2 NVMe PCIe Gen 4 Flex Bay Drive
3 3.5-inch internal SATA drive bays
M.2 and SATA RAID via Intel VROC ControllerNetwork 1 Onboard 1Gb Ethernet LAN port (Intel 1GbE I219)
Optional: Intel AX210 802.11AC WiFi & Bluetooth 5Expansion Slots 2 PCIe Gen 5 x16 slots
1 PCIe Gen 4 x8 slots
3 PCIe Gen 4 x4 slots

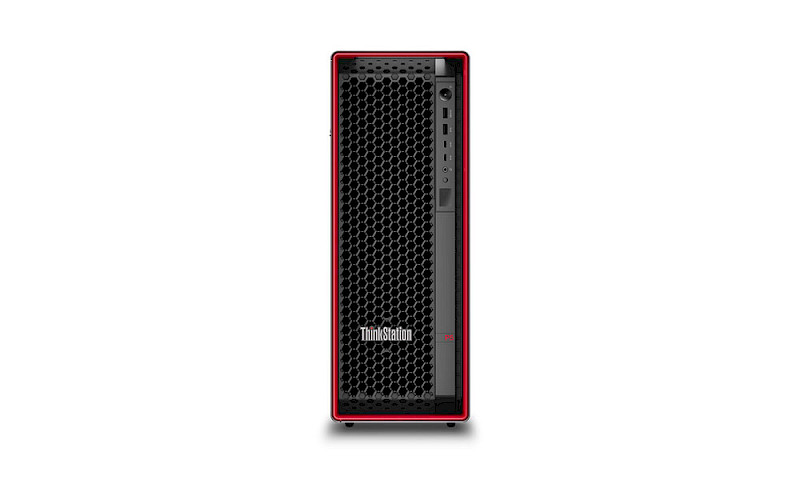

* Supports 2 full-height, double-width GPUsPorts and Connectors Front
1x USB 3.2 Gen 2 Type-A
1 USB 3.2 Gen 2 Type-A (w/ always on charging)
2 USB 3.2 Gen 2 Type-C
USB 3.0 15-in-1 media card reader
3.5mm Headset Jack

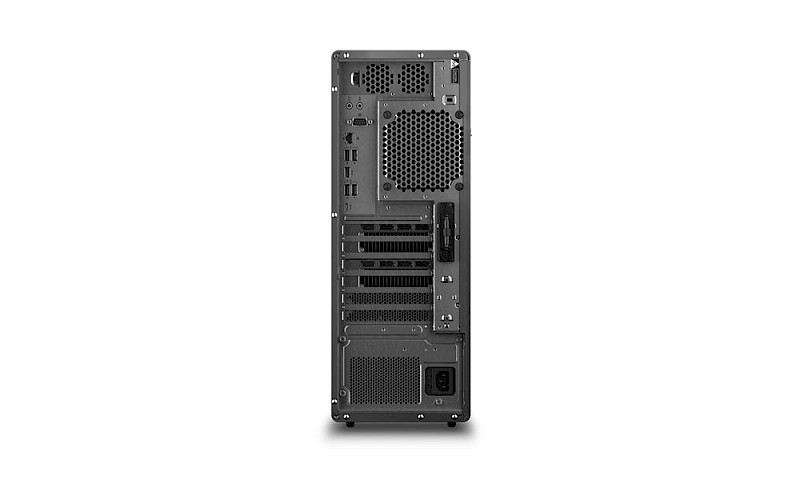

Rear
2 USB 2.0 Type-A
4 USB 3.2 Gen 1 Type-A
1 USB 3.2 Gen 2x2 Type-C
1 RJ45 1Gb Ethernet
Audio out
Audio inPower 750 watts, 92% efficient @ 50% load efficiency, power supply
1000 watts, 92% efficient @ 50% load efficiency, power supplyDimensions Height w/o feet: 17.3" (440mm)
Height w feet: 17.6" (446mm)
Width: 6.5" (165mm)
Depth: 17.9" (454mm)Weight Max configuration: 41.9lbs / 19kg Manufacturer Product Page https://thinkstation-specs.com/thinkstation/p5/ Documentation
